SHOP FOX W1772 10 HP 37-Inch Drum Sander

///SHOP FOX W1772 10 HP 37-Inch Drum Sander

SHOP FOX W1772 10 HP 37-Inch Drum Sander

$8,699.00

Designed for production shops, this 37″ sander has what it takes to get those big jobs done—fast. Sand boards and panels up to 4″ thick and 36-1/2″ wide, using two different abrasive grits in the same pass with the dual 6″ sanding drums. Feed speed is adjustable from 6 to 18 FPM. The variable-speed knob conveyor adjustment and amp meter make it easy to monitor the sanding load to ensure maximum efficiency. Other great features include a hinged hood, emergency stop bar, pedestal-mounted controls, four 4″ dust ports, and a 10 HP, 240V, single-phase motor. Certified to CSA and UL standards.

Category:

Description

Specifications

  • Sanding drum motor: 10 HP, 240V, single-phase, TEFC, 1725 RPM

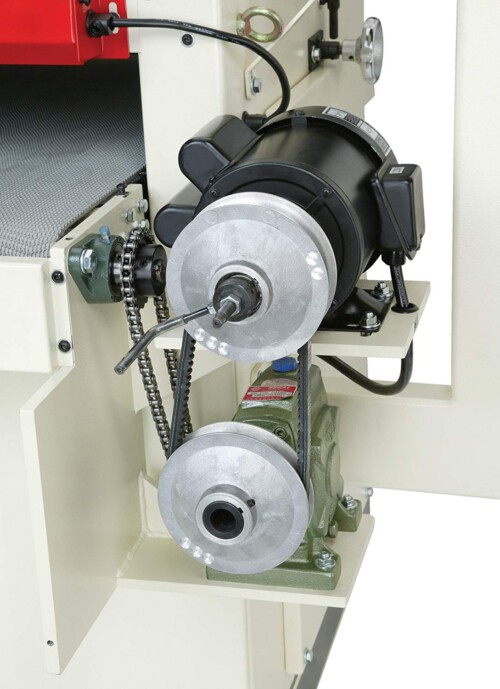

  • Conveyor motor: 1/3 HP
  • Drum surface speed: 2800 FPM
  • Max. board width: 36-1/2″
  • Max. board thickness: 4″
  • Min. board length: 9″
  • Min. board thickness: 1/16″
  • Conveyor feed rate: Variable, 6–18 FPM

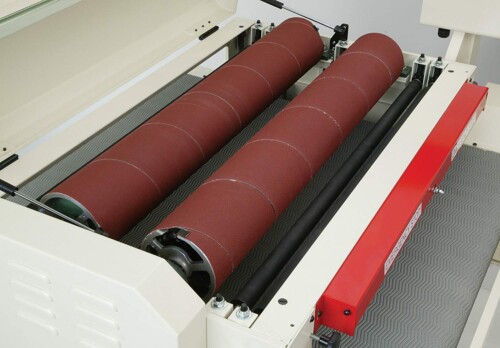

  • Sanding drums: (2) steel/rubber
  • Drum diameter: 6″
  • Dust ports: (4) 4″
  • Sandpaper dimensions: 6″ x 138″
  • Overall size: 62″W x 49″H x 53″D
  • Approximate shipping weight: 1379 lbs.
