Cut panels & wide stock all day long with this 10″ Heavy-duty Cabinet Table Saw. A 52″ rip capacity & extended side & rear tables will support a full sheet of plywood, making ripping & cross cutting operations safe & simple. A guard with splitter or interchangeable riving knife helps prevent binding and kickback, and a rail mounted magnetic switch with thermal overload protection provides additional safety features. Bevel cutting is also safe & precise with the left tilting blade & digital angle display. Includes a miter gauge & 10″ blade. CSA certified meeting CSA C22.2 #71.2-08; CSA C22.2 #105-1953 and UL 987 standards!

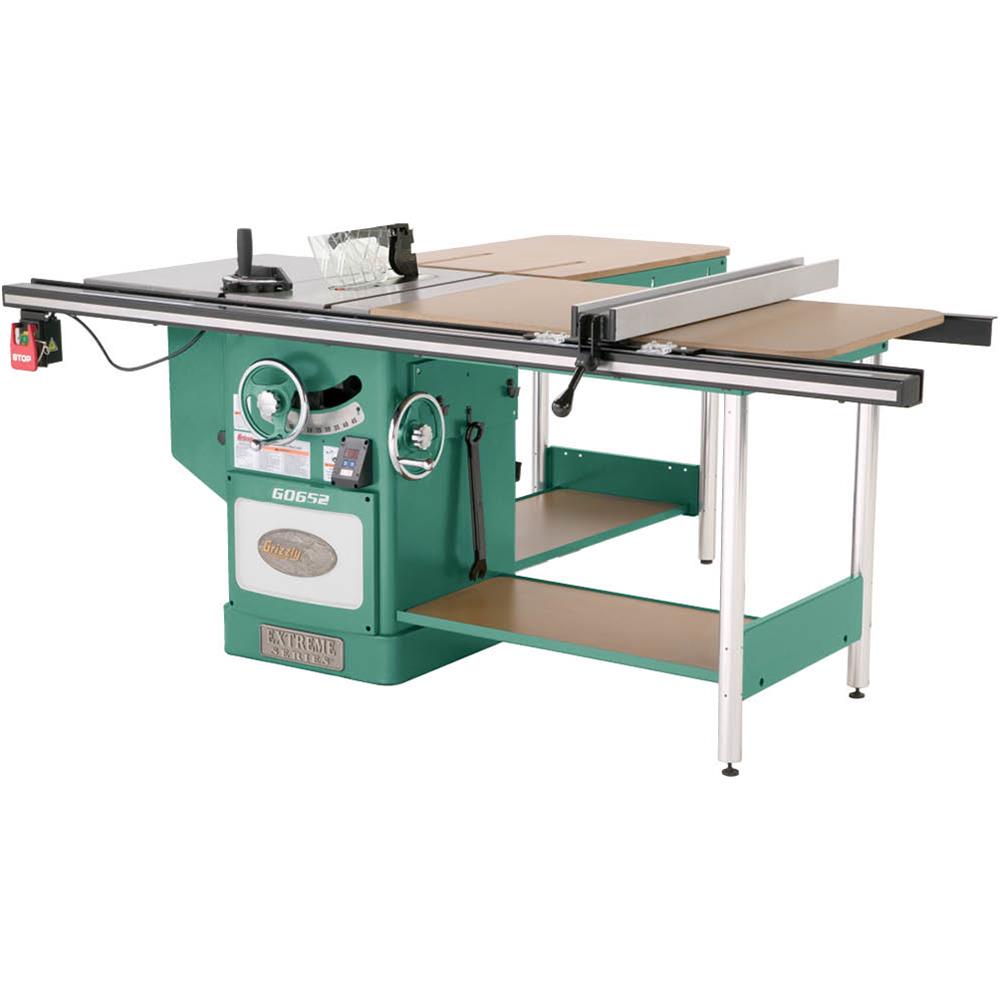

Grizzly G0652 – 10″ 5 HP 3-Ph Heavy-Duty Cabinet Table Saw
$2,899.00
Out of stock
Out of stock
Description
- 5 HP, 220V/440V*, 3-phase
- 12/6 Amps
- Blade tilt: Left, 45°
- Table height from floor: 34-7/8″
- Table size with extension: 27″ x 75-3/4″
- Arbor speed: 4000 RPM
- Arbor size: 5/8″
- Maximum dado width: 3/4″
- Maximum depth of cut @ 90°: 3-3/16″
- Maximum depth of cut @ 45°: 2-3/16″
- Maximum rip capacity: 52″ right, 18″ left
- Distance from front of table to blade at maximum cut: 10-5/16″
- Distance from front of table to center of blade: 14-7/8″
- Overall dimensions: 91-1/2″L x 75″W x 40-5/8″H
- Approximate shipping weight: 716 lbs.Features:
- Precision-ground cast-iron table
- Cast-iron trunnions
- 3/8″ x 3/4″ T-slots & miter gauge
- 4″ dust port
- Power transfer: Serpentine belt
- Steel cabinet
- Hinged motor cover

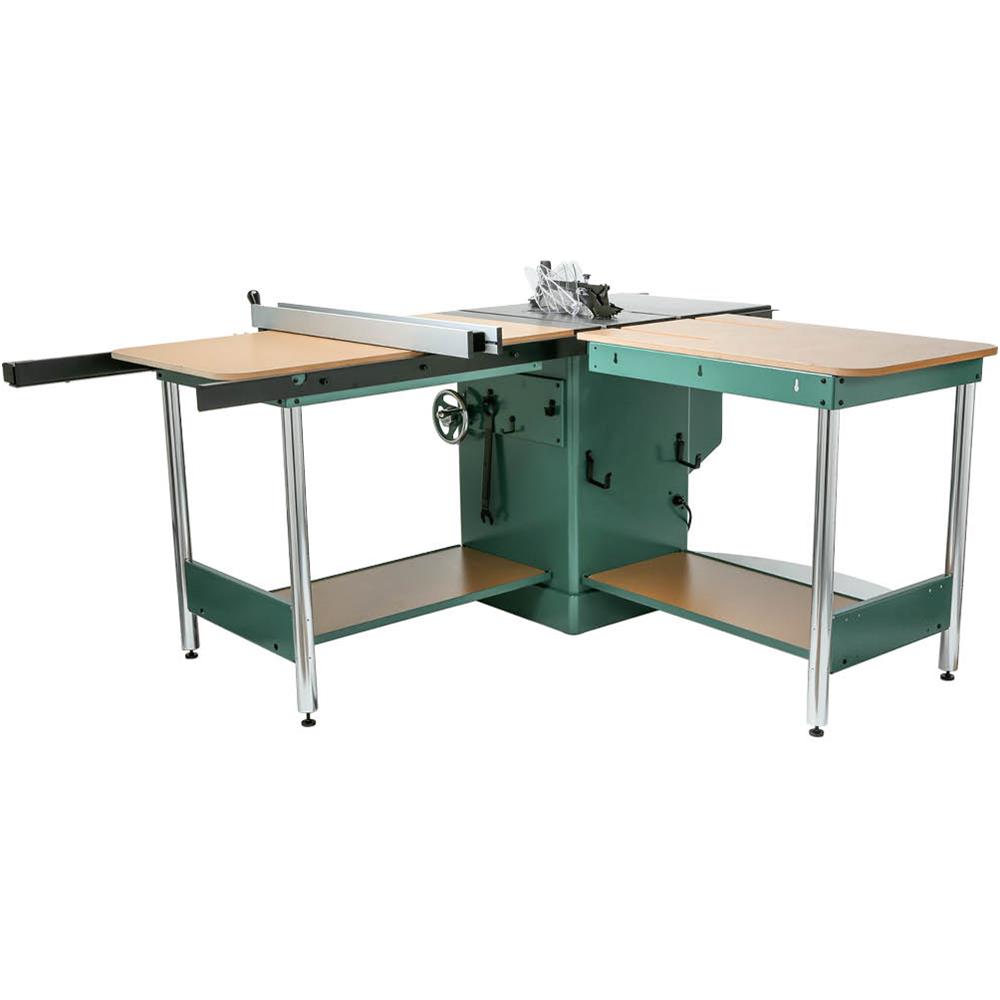

- Right hand and rear extension tables
- Magnetic switch with thermal overload protection

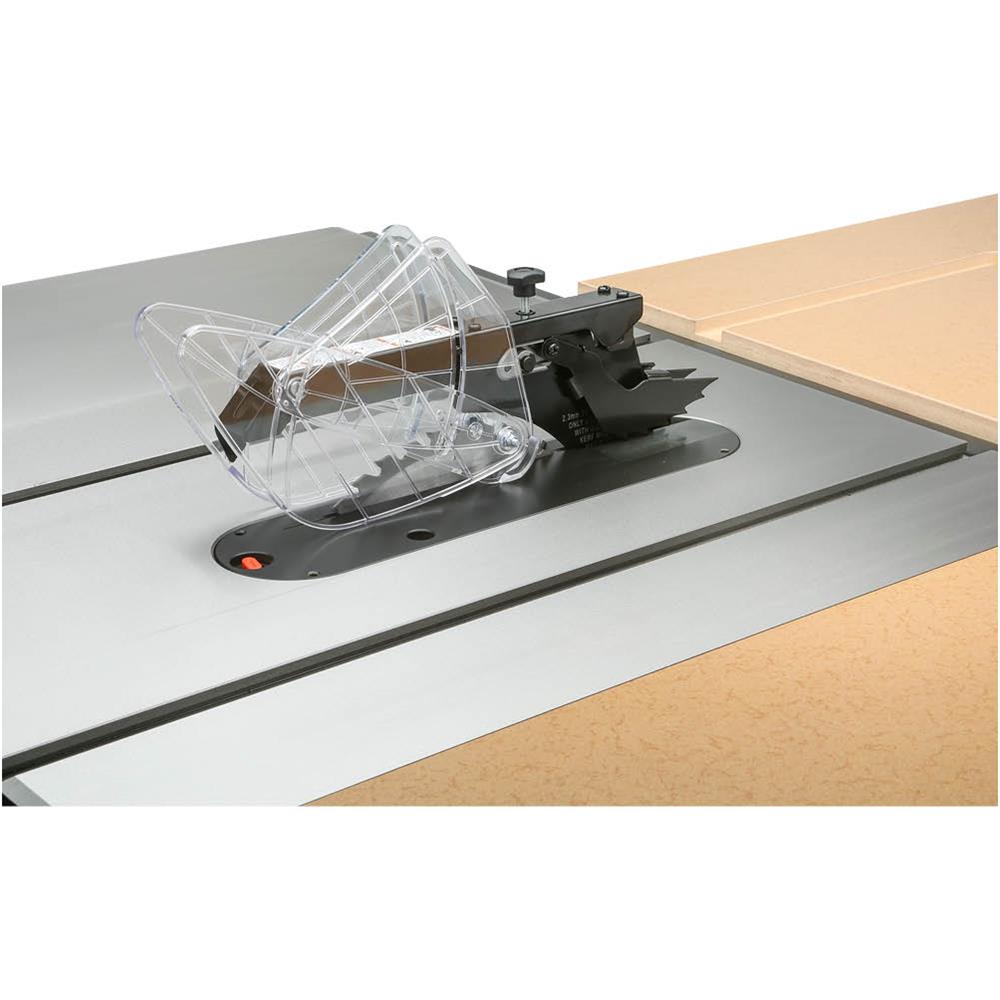

- Quick release steel splitter

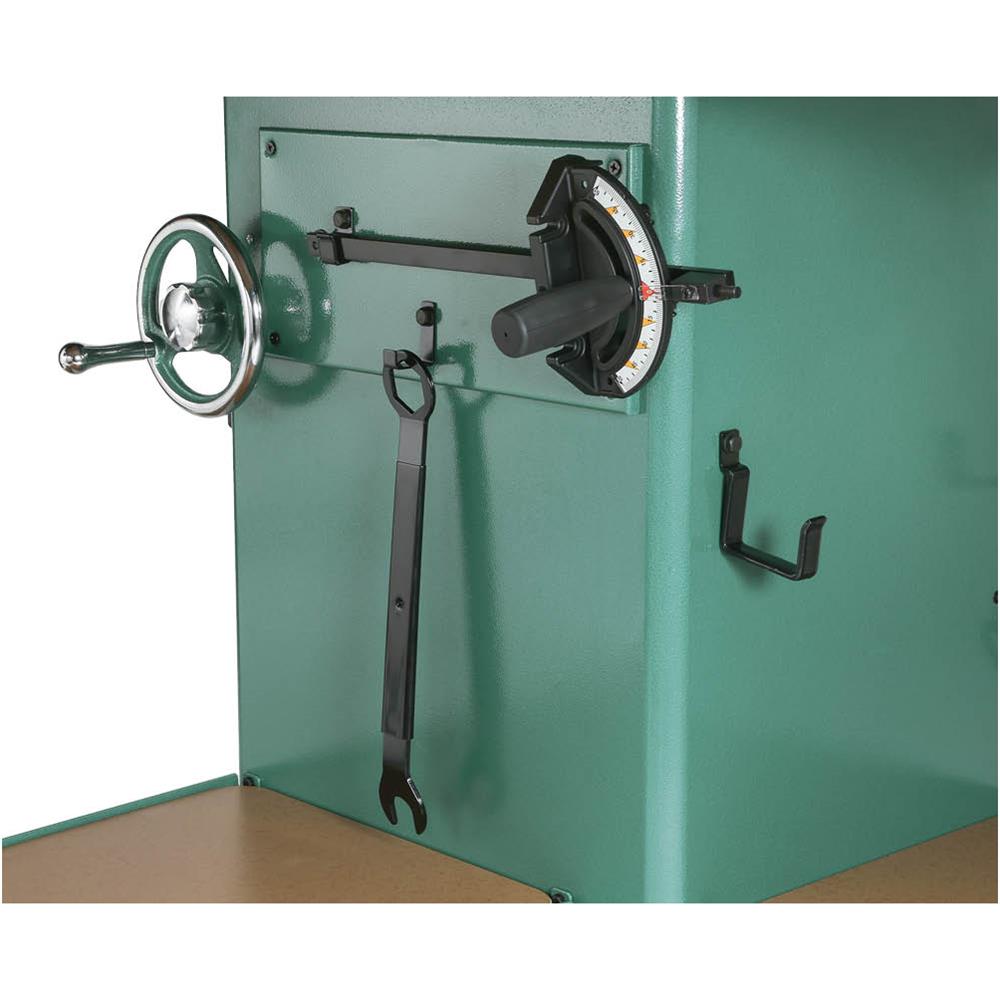

- Digital readout for bevel angle
- Includes 10″ x 40T blade440V operation requires purchasing additional components and installation by our technicians. Please call customer service at (570) 546-9663 for more information
D3122 PUSH STICKINCLUDED
Please Note: This machine requires a 3-phase power supply. 3-phase power is usually only available in industrial settings. Otherwise normal household power or residential shops usually only supply single-phase power. Unless you are certain that you have 3-phase power, buy a machine that uses single-phase power instead. If you have any questions, please call our Tech Support at 751-546-9663.
