414464 Jet Horizontal Band Saw, J-9180-3 HP 1 230V

////414464 Jet Horizontal Band Saw, J-9180-3 HP 1 230V

414464 Jet Horizontal Band Saw, J-9180-3 HP 1 230V

$3,379.00

Out of stock

J-9180-3 7 In. Zip Miter Horizontal Bandsaw

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.

California Proposition 65 Warning. View Warning Label

  • Mitering head swivels to cut any angle 0° – 60° while the work piece remains secured

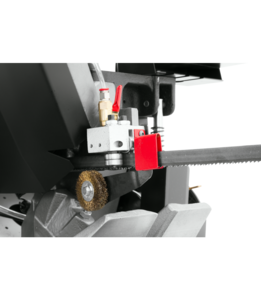

  • Adjustable blade guides that utilizes cam follower bearings mounted on eccentric shafts

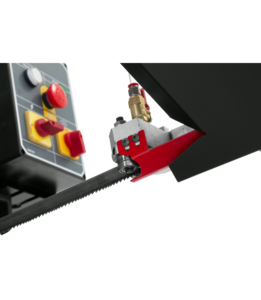

  • Convenient control panel with overload protection
  • Heavy-duty cast iron saw head and sturdy base
  • Fully adjustable hydraulic downfeed system
  • Large hand wheel and built-in gauge provides easy blade tensioning
  • Quick positioning vise reduces set-up time
  • Coolant system
  • Adjustable material stop
  • 3/4″ Bi-Metal blade

Out of stock

Category:

Description

Cutting Capacity (W x D) (In.) 7
Round at 45 Degrees (In.) 4-1/2
Round at 60 Degrees (In.) 2-3/4
Round at 90 Degrees (In.) 7
Rectangle at 45 Degrees (In.) 4-1/2 x 4-1/2
Rectangle at 60 Degrees (In.) 2-3/4 x 2-3/4
Rectangle at 90 Degrees (In.) 7-7/8 x 6
Head Movement (Deg.) 60°
Blade Size (In.) 3/4 x .035 x 82
Blade Length (In.) 82
Blade Wheel Diameter (In.) 10-1/2
Blade Speed (SFPM) 157, 314
Bed Height (In.) 35-7/8
Drive Geared Head
Motor (HP) 1 HP, 230V, 3Ph
Prewired Voltage (V.) 230
Overall Dimensions (L x W x H) (In.) 47 x 29 x 56-1/2
Weight (Lbs.) 375
