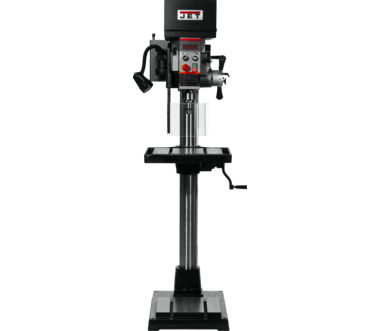

The 20” JET JDPE-20EVS-PDF EVS drill press produces high torque at all speeds in both forward and reverse necessary for a wide range of operations. Engineered to maximize output the 20’’ EVS drill press includes a three speed power down feed for heavy drilling applications and is capable of running from 50 to 2000 RPMs.
354251 JET 20″ EVS CLUTCH DRILL PRESSES 1-1/4″ Drilling 2HP, 115V, 1Ph
$4,999.00
Out of stock
Out of stock
Description
- Heavy casted column prevents failures prolonging the life of the machine
- Casted head for more accuracy and rigidity
- Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support
- Large precison ground t-slot production table
- CSA/US Certified
- LED machine lamp delivers extra light for more precise drilling

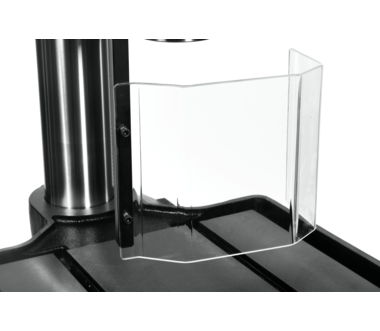

- Spindle guard protects user from flying debris

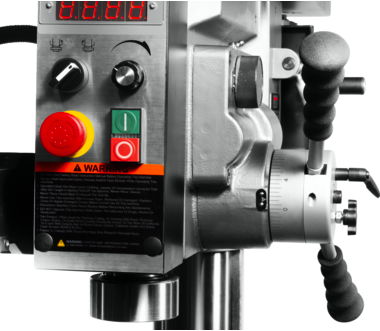

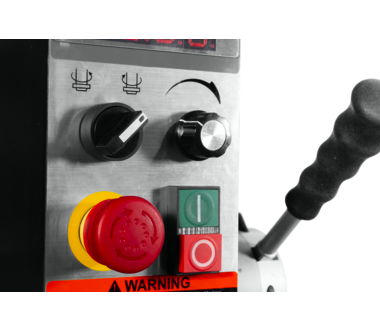

- Emergency stop allows for immediate shut off
- Various spindle speeds from 50-2000 RPM’s
- Front mounted LED spindle RPM readout

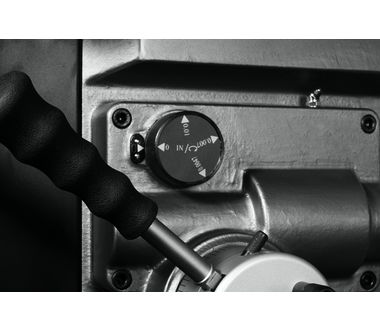

- 3-Speed power downfeed
- High torque at all speeds both forward and reverse
- Large hand grips designed with the user in mind
- Speed changes using a clutch system
- Speed changes using a clutch system
- Forward and reverse switch for instant tapping mode
- STANDARD EQUIPEMENT
- Tapping function
- Spindle power down feed system
- Electronic variable speed
- Large torque inverter
- Speed changes using a clutch system
- Spindle Guard
- LED Lamp
-
Quill Diameter (In.) 2.16 Drills to Center of Circle (in) 10 Drilling Capacity Cast Iron (In.) 1-1/4 Drilling Capacity Mild Steel (In.) 1-1/8 Tapping Capacity Mild Steel (In.) 5/8 Distance Column to Spindle (In.) 26-1/2 Swing (In.) 19-11/16 Quill Down Feed Rate (Number & RPM’s) No.3/ 0.005”/0.007”/0.010” Number of Spindle Speeds Variable Range of Spindle Speeds (RPM) Low 50 – 390 ; High 280 – 2000 Column Diameter (In.) 4 Spindle Taper (In. x TPI) MT-3 Spindle Travel, Manual (In.) 5 Spindle Travel Auto (In.) 4-1/4 Spindle Distance to Base (In.) 48-1/4 Spindle Distance to Table (Max.) (In.) 46.85 Table T-Slots, Number & Size (In.) 2 Slots for 5/8 bolts T-Slots Number and Size (In.) 2, 1/2 Table Size (L x W) (In.) 16-1/2 x 18-1/2 Base Dimensions (In.) 17.7 x 25-1/2 Base Work Table (In.) 14-3/16 x 13 Base Slots Number & Size (In.) 2 Slots for 5/8 bolts Motor (HP) 1.5HP, 230V, 3PH Inverter Type JET Exclusive Inverter Type / Power Source 2HP/115V/1PH Overall Dimensions (L x W x H) (In.) 32-3/5 x 22-2/3 x 70-25/64
